PCB Panels

PCB panelization is very common for PCB design and manufacture. It has some major obvious advantages as below.

1. Improves the PCB production efficiency.
2. Increase the material usage rate.
3. Solves the problem of small sized or unconventional shaped PCBs in production machine issues.
4. The extra PCB materials protects the inner board effectively.
5. Improves the PCB assembly efficiency.

You can be confident to rely on 三德盈 Electronic on PCB panelization, when you place orders. You can either provide the panelized PCB gerber files, or single unit PCB gerber files. 三德盈 engineers panelize the PCBs according to your requirements.

Well, you may have doubt that how the panelized PCBs should be separated into single units after assembly. There are mainly three methods involved in panelization.

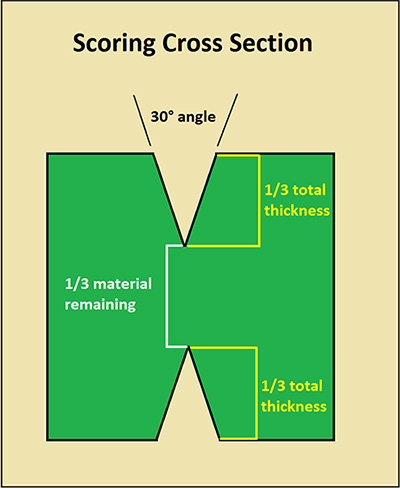

1. V scoring, or V-cut. V Scoring is the creation of the V-shaped breaking lines that connect printed circuit boards so you can separate them easily, a process that further increases efficiency.

2, CNC routing, it make a gap between two parts and separately them completely. So it is not singly used, but usually used along with V scoring or mouse bites. Usually the CNC routing space is equal or more than 1.6mm in order to make sure the production efficiency and quality.

3, Mouse bites. Mouse Bites are a line of holes in a PCB board functioning much like the lines of holes used on an array of postage stamps. They provide necessary connection but would not be too strong to be separable. Mouse bites are used along with CNC routing usually.

三德盈 offers free PCB panelization service and suggestions on any of your PCBs.
